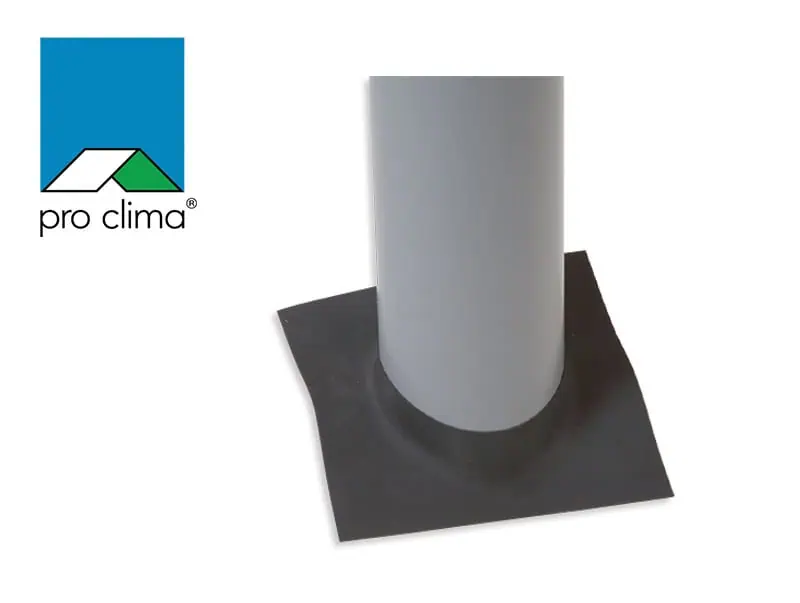

ROFLEX 50

Sealing grommets for pipes, Ø 100-120 mm (4”-4 3/4”), for interior and exterior use.

ROFLEX 30 to 300 range are sealing grommets ideally suited for quick and permanent airtight sealing of penetrations of pipes. It is made of strong and flexible EPDM and can be used inside to seal penetrations through the airtightness layer as well as outside for penetrations in the roof and wall underlays. Pipes can be pulled and pushed without damaging the airtightness layer.

Advantages
Keeps building components dry: quick and simple sealing
Reliable joints thanks to TESCON VANA with water-resistant SOLID adhesive
Reliable even in hot environments: stable at temperatures up to 150 °C
Practical handling: pipes can be pushed and pulled through the grommet – the joint remains sealed
Extremely flexible and elastic, no protruding sleeve
Construction in adherence with standards: for airtight sealing in accordance with DIN 4108-7, SIA 180 and RE 2020
Excellent values in hazardous substance testing, has been tested according to the ISO 16000 evaluation scheme
Areas of application
For rapid and permanent airtight feedthroughs for pipes through the airtight sealing layer. Can also be used outdoors, e.g. for sub-roofs and for refurbishment vapour check.
Stick with TESCON VANA.

* Airtight & watertight for the life of the building
* Ideal for sealing pipe penetrations
* High-quality EPDM, extremely flexible and elastic
* Excellent UV exposure – up to 180 days
* Long-term durability

Sealing grommet for pipes of various diameters
ROFLEX 30 for pipes Ø 30 mm – 50 mm
ROFLEX 50 for pipes Ø 50 mm – 90 mm
ROFLEX 100 for pipes Ø 100 mm – 120 mm
ROFLEX 150 for pipes Ø 120 mm – 170 mm
ROFLEX 200 for pipes Ø 170 mm – 220 mm
ROFLEX 250 for pipes Ø 220 mm – 270 mm
ROFLEX 300 for pipes Ø 270 mm – 320 mm

Safety Data Sheet ROFLEX_AUS-NZ
